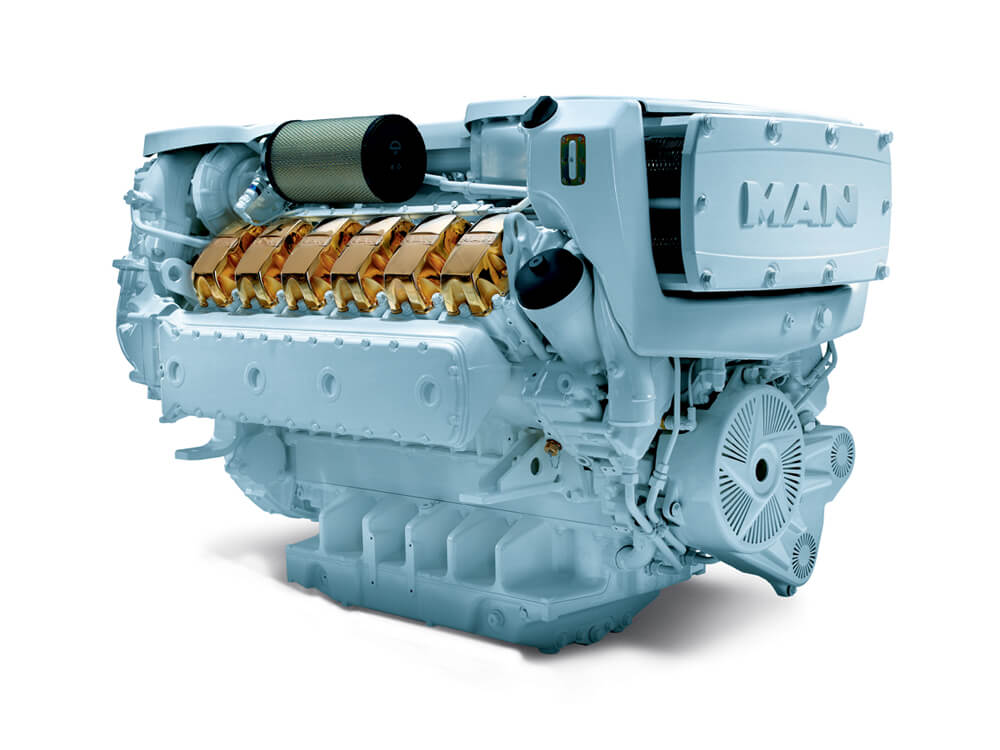

MAN V12-1400 / V12 1550

MAN Engines for (Luxury) Yachts and Sport Fishing Boats

Yacht Engines manufactured by Man Engines are suitable for application to expensive yachts and sport fishing boats because of its features such as minimal fuel consumption for cost efficient performance yet providing users with a compact and high-speed di

Στοιχεία Προϊόντος

Yacht Engines manufactured by Man Engines are suitable for application to expensive yachts and sport fishing boats because of its features such as minimal fuel consumption for cost efficient performance yet providing users with a compact and high-speed diesel drives from 537 kW to 1,324 kW. In addition, the range of outputs by the engines lengths from 537 kW to 1,324 kW (730 HP to 1,800 HP) and includes all the recent generation V8 and V12 engines as well as the stable six-cylinder engine. Furthermore, with the Man Yacht engines, a neat yet silent and dependable propulsive power is performed

Characteristics

  • Cylinders and arrangement: 12 cylinders in 90° V arrangement
  • Operation mode: 4-stroke diesel engine, watercooled
  • Turbocharging: Turbocharger with charge air intercooler and waste gate
  • Number of valves: 4 valves per cylinder
  • Fuel system: Common Rail direct fuel injection with electronic control
  • Engine lubrication: Closed system with forced feeding, oil cooling and filtering
  • Type of cooling:Plate heat exchanger, seawater cooled
  • Engine control: Electronic injection control (EDC) Electronic engine monitoring including diagnostic unit
  • Fuel: DIN EN 590

Technical features V12-1400 and V12-1550

Type designation
V12-1400
V12-1550
Displacement l
24.24
24.24
Maximum output to DIN ISO 3046-1 kW (hp)
1,029 (1,400)
1,140 (1,550)
Rated speed rpm
2,300
2,300
Maximum torque Nm
4,680
5,180
at speed rpm
1,200 – 2,100
1,200 – 2,100
Absolute fuel consumption at rated power 1) l/h
267
299
Classifiable
Yes
Exhaust gas status

IMO Tier II, EPA Tier 3 2),
RCD 2013/53/EC,
RCD 94/25/EC, 97/68/EC

IMO Tier II, EPA Tier 3 2),
RCD 2013/53/EC,
RCD 94/25/EC, 97/68/EC


Dimensions V12-1400 and V12-1550

Type designationV12-1400V12-1550
A-Overall width mm
1,153
1,153
B-Overall width mm
2,130
2,130
C-Overall width mm
1,230
1,230
D-Top of engine to crankshaft centre mm
765
765
E-Length of engine from front end to edge of flywheel housing mm
1,630
1,630
Average weight of engine ready for installation (dry) kg
2,270
2,270

Benefits at a glance

High power development

Compact design

High power development

Low fuel consumption

Clean and quiet
