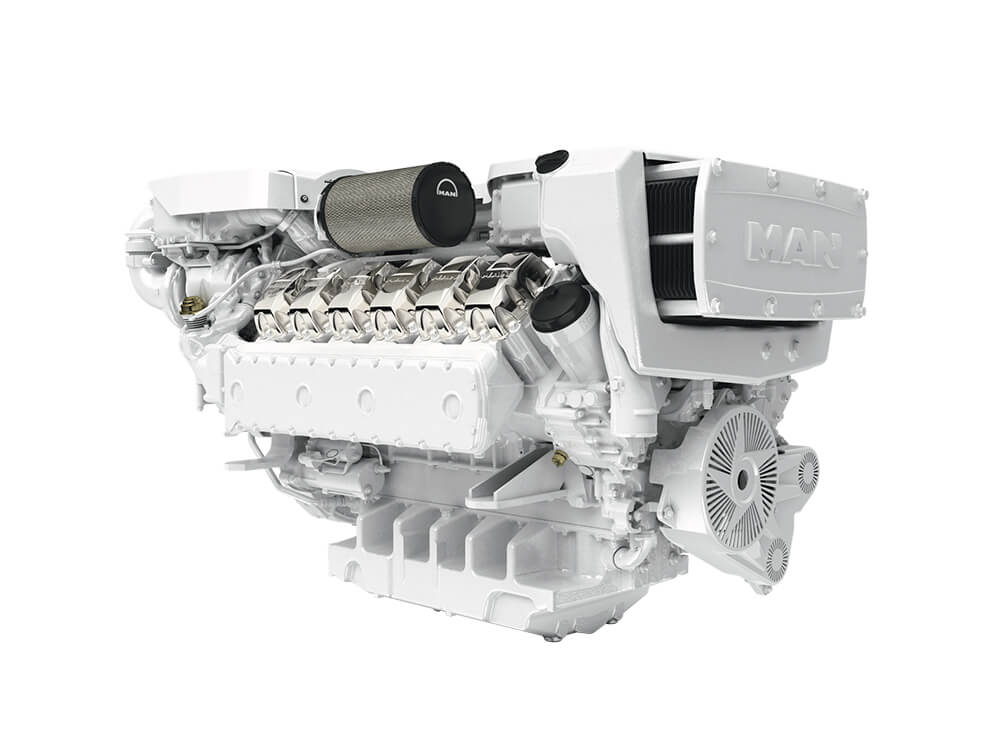

MAN V12-1900

MAN Engines for (Luxury) Yachts and Sport Fishing Boats

Thanks to the performance enhancement that increased engine power to 1,397 kW (1,900 HP) at a weight of 2,365 kg (dry), the MAN V12-1900 sets standards in its class in terms of power-to-weight ratio.

Στοιχεία Προϊόντος

Characteristics

  • Cylinders and arrangement: 12 cylinders in 90° V arrangement
  • Operation mode: 4-stroke diesel engine, watercooled
  • Turbocharging: Turbocharger with charge air intercooler and waste gate
  • Number of valves: 4 valves per cylinder
  • Fuel system: Common Rail direct fuel injection with electronic control
  • Engine lubrication: Closed system with forced feeding, oil cooling and filtering
  • Type of cooling: Plate heat exchanger, seawater cooled
  • Engine control: Electronic injection control (EDC) Electronic engine monitoring including diagnostic unit
  • Fuel: DIN EN 590

Technical features V12-1900

Type designation V12-1900
Displacement l
24.24
Maximum output to DIN ISO 3046-1 kW (hp)
1,397 (1,900)
Rated speed rpm
2,300
Maximum torque Nm
6,220
at speed rpm
1,200 – 2,100
Absolute fuel consumption at rated power 1) l/h
373
Classifiable
Exhaust gas status
IMO Tier II, EPA Tier 3,
RCD 2013/53/EC,
RCD 94/25/EC, 97/68/EC

Dimensions V12-1900

Type designationV12-1900
A-Overall width mm
1,153
B-Overall width mm
2,139
C-Overall width mm
1,272
D-Top of engine to crankshaft centre mm
808
E-Length of engine from front end to edge of flywheel housing mm
1,658
Average weight of engine ready for installation (dry) kg
2,380

Benefits at a glance

High power development

Compact design

High power development

Low fuel consumption

Clean and quiet
